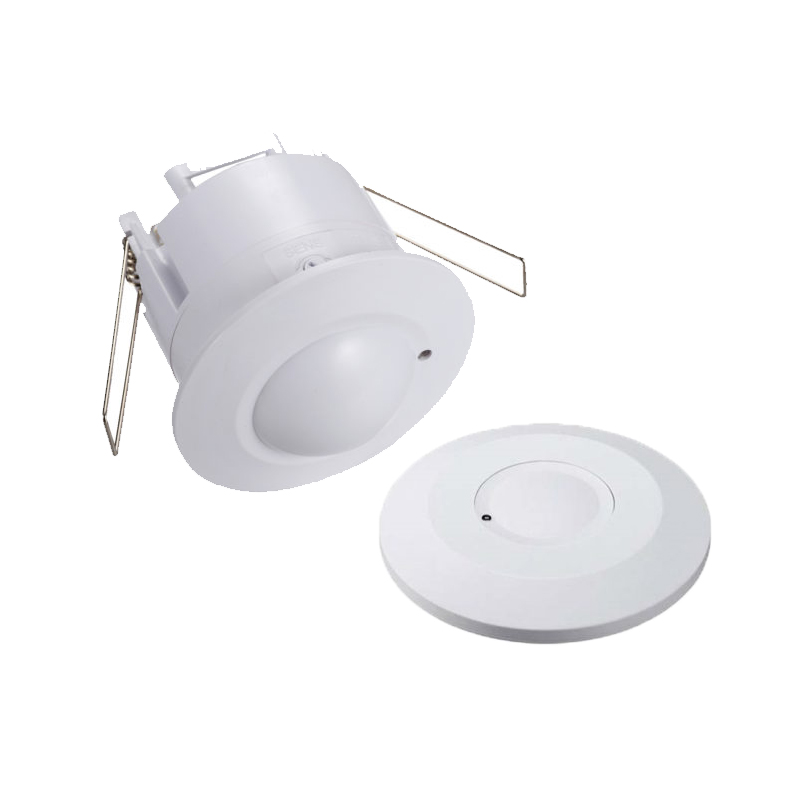

DESCRIPTION
The product is a new saving-energy switch; it adopts microwave sensor mold with high-frequency elector-magnetic wave (5.8GHz), integrated circuit.
- Low power consumption, power-saving.
- Detect distance, ambient light and time-delay are adjustable, you can make your own setting.
- Microwave radar sensor, 360° wide angle detection and further detection distance, can penetrate glass and veneer, but not wall.
- Pluggable type of the terminals which make easier and much convenient to install.
- Applicable to monitoring equipment, led lamp, fluorescent lamp, incandescent lamp, ventilator and magnetic valve and so on.
- Well suited to circulation areas, integral garages, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on accidentally. Can be installed on wall, ceiling and anywhere of your house.
FEATURES
- Operating Volt: AC 220-250V 50Hz-60Hz.
- Load power: Up to 1200W Max
- Ambient Light: 10-2000Lux (Adjustable)
- Load type: Incandescent lamp, LED light, CLF, fans, etc.
- reach:1-8m(radii.), adjustable HF system: 5.8GHz CW radar , ISM band
- Detecting distance: 3~12 Mtr
- transmission power:<10mW
- Detecting Angle: 360 Degree.
- Installation Height: 2.2-4 Mtr
- Motion Detection Speed: 0.6~1m/s
- Power Cusumption:0.1W (static) & 0.4(Work)
- Working Humidity: less than 93%RH
- Delay: 10 Seconds -15 Minutes (Adjustable)
